    Factory Direct Reinforced Graphite Composite Gasket with Tinplate

    Ask Lasest Price
    Brand Name : CLINGSEAL
    Model Number : CS1080T
    Certification : ISO,SGS
    Price : USD 2.15-3.0 PER KG
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100Tons per month
    Delivery Time : 1-4 weeks
    • Product Details
    • Company Profile

    Factory Direct Reinforced Graphite Composite Gasket with Tinplate

    Factory Direct Reinforced Graphite Composite Gasket with Tinplate
    Looking for high - quality Factory Direct Reinforced Graphite Composite Gaskets with Tinplate? You've come to the right place! Our graphite gasket sheets are available in thicknesses ranging from 1.0 to 6.0 mm. For optimal performance in your application, we recommend choosing the thinnest material that meets your requirements.

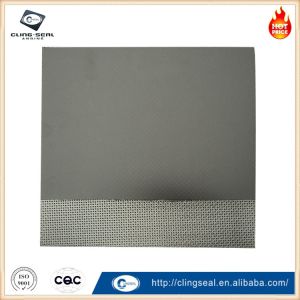

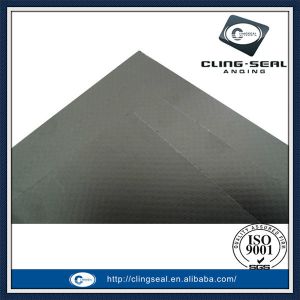

    Our Factory Direct Reinforced Graphite Composite Gaskets with Tinplate are constructed with two sides of pure flexible graphite sheet and a 0.2 - 0.25 mm perforated metal insert. The metal insert is usually 0.2 - 0.25 mm carbon steel, also known as tinplate, but we also offer options like ss201, 304, and 316. You can select from different carbon contents, namely 95%, 97%, 98%, and 99%.
    These gaskets are designed to excel in high - temperature and high - pressure environments. They are commonly used in steam cycling or exhaust applications, making them an ideal choice for various industrial needs.

    Factory Direct Reinforced Graphite Composite Gasket with Tinplate

    Product Features
    • Exceptional adaptability and durability ensure long - term performance. They offer excellent sealing properties, with no risk of delamination and a high yield rate.
    • As an economical sealing solution, they are perfect for exhaust and manifold gasket applications.
    • They have outstanding oil - resistance, making them suitable for applications where oil contact is inevitable.
    • With high - temperature and pressure resistance, they can withstand harsh operating conditions.
    Product Application
    Our Factory Direct Reinforced Graphite Composite Gaskets with Tinplate are highly suitable for oil sealing and gasket applications, especially for cylinder head gaskets.
    Product Size
    • Thickness: 1.0 - 6.0 mm. For thicker options, we have the 3 + 2 type (where the product section from top to bottom is Paper - Metal - Paper - Metal - Paper) and use multi - paper bonding technology.
    • Standard sizes include 500500mm, 5001000mm, 5001500mm, 10001000mm, 1000*1500mm. However, we also offer custom sizing to meet your specific needs.
    If you can't find the exact product you're looking for or require a bespoke material, don't hesitate to contact us. Unsure which material is best for your application? Consult our gasket material selector or our guide to rubbers. Purchase your Factory Direct Reinforced Graphite Composite Gaskets with Tinplate today and experience top - notch quality and performance.



    Physical Property:

    ItemData
    Tensile Strength (MPa,min.)≥30
    Compressibility (%,)10-20
    Recovery (%)≥35
    150ºC, At IRM 903# for 5hoursThickness Increase(%)≤10
    Weight Increase(%)≤10
    21ºC~30ºC, At B Fuel for 5hoursThickness Increase(%)≤10
    Weight Increase(%)≤10
    Thickness Deviation(mm)0.05


    Product Technical Details
    As a general rule, graphite is:
    • Good for use with steam
    • Good ozone resistance
    • Good with natural gas

    Customer Service

    We are happy to answer any questions that you might have about this product. Please contact us for more information.

    Product Shows

    Factory Direct Reinforced Graphite Composite Gasket with TinplateFactory Direct Reinforced Graphite Composite Gasket with TinplateFactory Direct Reinforced Graphite Composite Gasket with Tinplate
